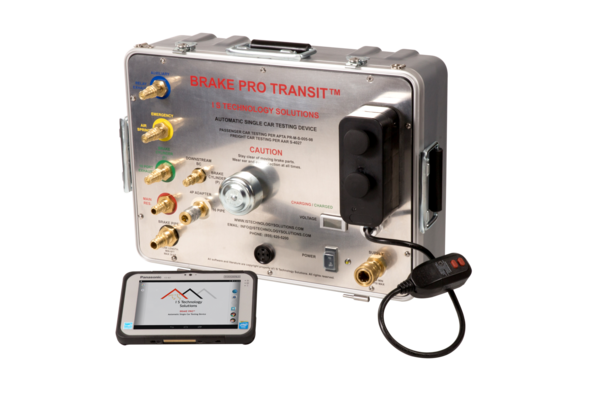

Brake Pro Transit

This 4 Pressure Automatic Single Passenger Car Tester is the ONLY Automatic Single Car Testing Device (ASCTD) for Passenger cars in the world. The device weighs approximately 40 lbs. and drastically cuts time versus manual testing.


Automatic Testing is vastly superior to manual testing.  Why?

Freight Cars have enjoyed the ease and efficacy of automatic testing for years already.

Automatic testing is faster. It can save up to 15 minutes per car versus manual testing.
Automatic testing is more accurate. An ASCTD takes operator judgment and error out of the testing process.
Automatic testing ensures a proper test. With a step-by-step walkthrough, all steps must be performed in order to proceed.
Automatic testing is more profitable.  AAR Job Code 1146 allows 12% higher billing on foreign cars if tested automatically.
Automatic testing results in less down time.  ASCTS's require only annual calibration, versus quarterly for manual devices.

The Brake Pro Transit is the only Passenger ASCTD in the world.  Here is why it is great!


Brake Pro Transit is customized

  • We code the software to test all models of a railway correctly. The operator does not have to memorize the different testing parameters or follow along with a manual, the device does it all.

Brake Pro Transit tests any length of car.

  • It is the only device that will perform accurate tests on all cars, even those of extreme lengths.

Brake Pro Transit is light and  portable.

  • At only 40lbs, the Brake Pro Transit is easily carried by one person and features easy carrying case and handles

Brake Pro Transit is fast

  • It is the Automatic testing dramatically decreases the testing time over manual testing.  Cars can be tested in under an hour as opposed to almost 2 hours using the manual methods.

Brake Pro Transit is affordable

  • The Brake Pro Freight price tag affordable enough for even the smallest railways.

Brake Pro Transit is user friendly

  • With its Android operating system, and a wireless Toughpad interface, the Brake Pro Transit is user friendly and minimizes the possibility of user error or omission.

Repairs and Calibrations are fast and easy

  • I S Technology Solutions maintains a service shop which can turnaround most repairs and calibrations within 48 hours.

Brake Pro Transit is durable

  • The device case is rugged, lightweight, and does not require crating for shipping.

​Brake Pro Transit tests freight and maintenance-of-way cars too

  • The device can run both the APTA single car test, as well as the AAR S-4027 test.


AND the Brake Pro Transit offers Options

  • Shock Mounted Mobile Unit for service trucks
  • Independent Cart with self retracting reels for mobility of the device together with the required hoses and accessories
  • Remote access for updates, upgrades and some repairs.
  • Internal Heater/Cooler for ideal and efficient use in extreme conditions.​




SPECIFICATIONS

​

​Testing Specification:          APTA-PR-M-S-005-98 Rev2.1

​Power:                                      120VAC or 12VDC 5.0A/h battery (last approx. 8 hours)

Weight:                                     Portable approx. 40 lbs.

Dimensions:                           19" x 15" x 11"

Operating Temperature:    -40F to 140F, optional internal heater/cooler available

Calibration:                           Annually, per AAR S-4027

Tablet Operating System: Android

Tablet IP Rating:                  IP65 (full dust protection and high pressure jet spray)

Warranty:                               One year limited warranty, parts and labor
